AAREAL company undertakes all kinds of crushing, screening, iron removal, feeding, conveying, lifting production line, such as high titanium slag crushing and screening plant, which includes bucket elevator, belt iron remover, vibrating feeder, crusher, bucket elevator, gyratory screen machine, iron remover, vibrating conveyor etc.

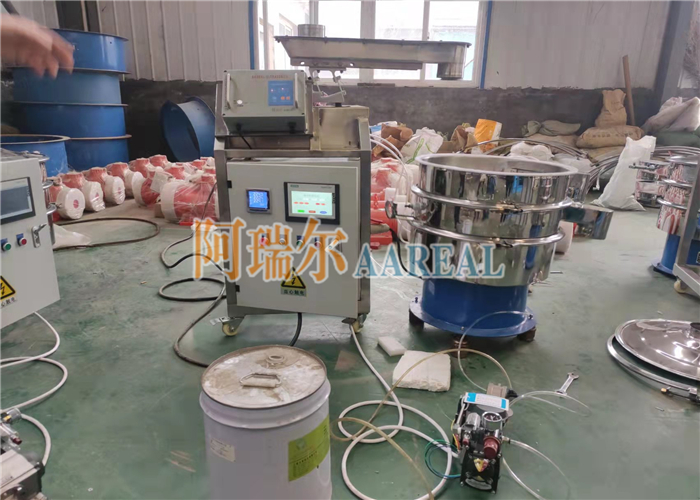

Stainless Steel Ultrasonic Intelligent Feeding and Screening System For Powders includes electromagnetic vibrating feeder, 600mm rotary vibration screen, ultrasonic system, pneumatic butterfly valve, intelligent control panel etc.
The appearance of similar rotary vibrating screens, different configurations, prices will vary greatly. So, what are the factors that affect the price of the rotary vibrating screen?

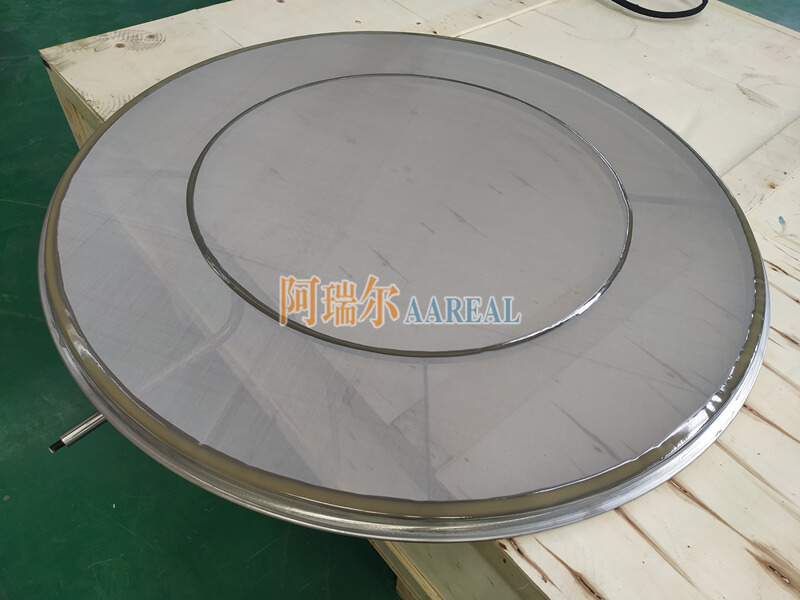

AAREAL ultrasonic vibrating screen generally adopts the adhesive type of Screen Frame (or someone may call it Screen Holder). This video shows how to replace ultrasonic vibrating screen mesh cloth. 1. Spread the screen on the special tooling. (people who buy our ultrasonic vibrating screen, we can send this tooling to them for free) 2. Tighten the screen with a hoop. 3. Cut off the excess screen around. 4. Set aside after cutting. 5. Place the external ultrasonic screen frame in the proper place. 6. Mix the two kinds of glues together and stir well. 7. Apply the mixed glue evently to the outer and inner circles of the frame. 8. Place the screen flat on the ultrasonic screen frame and tighten it up and down with clamps. 9. After drying, remove the clamps and cut off the excess screen around. 10. Get the final adhesive type ultrasonic screen frame. AAREAL Machine Co.,Ltd produce many kinds of screening machine, such as rotary vibrating screen, ultrasonic separator, vibrating control screener, tumbler screening machine, gyratory screen, centrifugal sifter, linear vibrating screen, mogensen vibrating screens, dewatering screen, rotary trommel screen etc. If you...

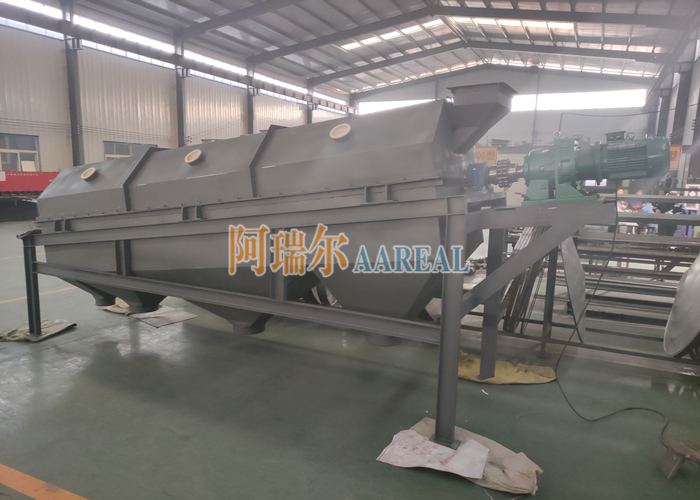

A client from Egypt require a 1000*4000mm rotary trommel screen for herbs. His client wants to process herbs such as Chamomile, Peppermint etc. This sieve machine has 3 segments of screen, with 4 discharge ports. Carbon steel is OK. 1000*4000mm trommel screen means the screen drum diameter is 1000mm, and the length is 4000mm. Trommel screen is cylindrical drum, which is inclined and installed on the frame. The geared motor is connected to the drum device through a coupling, the driving drum will rotate around the axis direction. The trommel screen machine consists of motor, reducer, screen frame, inlet, outlet, support base, and so on. Working Principle of Trommel Screen: When the materials enters the drum device, due to the tilt and rotation of the drum device, the materials on the screen surface is overturned and rolled so that the fine material is discharged through the discharge port at the bottom of the back end of the drum of trommel screen, and the coarse material is discharged through the discharge port at the tail of the drum discharge. As the material in the drum devise flip, rolling, so the materials stuck in the sieve can be ejected...
