AAREAL company undertakes all kinds of crushing, screening, iron removal, feeding, conveying, lifting production line, such as high titanium slag crushing and screening plant, which includes bucket elevator, belt iron remover, vibrating feeder, crusher, bucket elevator, gyratory screen machine, iron remover, vibrating conveyor etc.
Our company can make many kinds of screening machines for sugar-making usage, such as Rotex type sugar gyratory screen, sugar tumbler screening machines, sugar rotary vibrating screen, sugar linear vibrating screen, sugar trommel screen and high-efficiency rectangular Mogensen vibrating separator etc. The 1500*3000mm propability vibrating screen shown above has 2 layers of screens. The upper layer adopts stainless steel wedge screen, and the lower layer uses stainless steel woven wire mesh. And the part that contact raw material is made of food grade stainless steel 304 material. This kind of Mogensen sizer uses 2 units of vibration motors as the driving source, which the screen machine to do linear vibration motion. The entire equipment is closed design, very environmentally friendly. We have some experience in screening sugar with this kind of high efficiency linear vibrating sieve. For example, our 1500*3600mm vibrating sifter can process more than 500 tons per hour sugar, mesh size 50mm, and use grizzly bar sieve; and our 1500*2800mm vibrating screen can process more than 200 tons per hour sugar, mesh size 20mm, and use stainless steel woven wire mesh. Besides, our Rotex type gyratory sifter is also widely used in sugar industry with large output and high screening accuracy. ...
Our company can produce Special Rotary Vibrating Screen for Iron Oxide Pigment, only the contact part made of stainless steel 304 material, diameter from 400mm to 2000mm. For less oversize material or just for safety screening, we can design the bottom frame with a beveled bottom, which could make the discharge speed faster. Diameter 1200mm Stainless Steel Rotary Vibrating Screen for Iron Oxide Pigment The AY-1200-1S round vibrating separator showed above is specially designed for one of our client. This customer only performs simple safety screening and does not do size grading. There are almost no oversizes finally. Therefore, we only designed a outlet for fine material and made a beveled bottom frame. You will find that the bottom frame is higher relative to the ordinary vibro sifter in the photo above. The multi-layer rotary vibating screen adopts one unit of vertical vibrating motor, which produces a horizontal, vertical and oblique vibration of three dimensional, and then directly passes the vibration to screen surface. Changing the angle of the upper and lower eccentric block of the motor, it produces different exciting force, and the direction in which the material running...

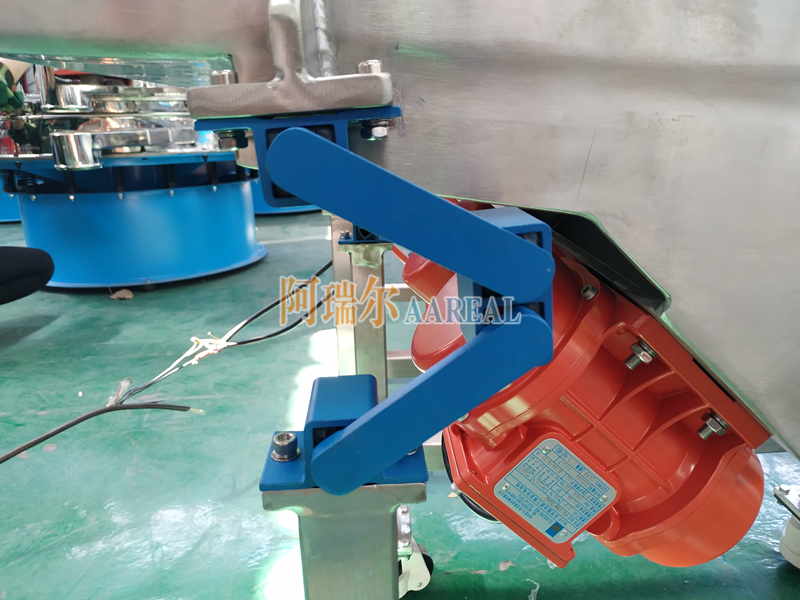

One of AAREAL’s client require a special designed Vibrating Feeder with Elastic Vibration Support Elements. Why is this vibration feeder special? Because this vibratory feeder adopts a new type of spring, not the traditional steel spring. This new type of spring can be called elastic vibration support, or elastic shock absorbing support spring etc. The new type of elastic vibration support has the following characteristics: 1. Efficient vibration isolation. The guiding function provided by the four rubber elastic modules in the support enhances the linear vibration of the screen. Under load, the elastically supported boom structure can produce a large amount of elastic deformation, so the support has a very low natural frequency, which provides efficient vibration isolation and protects the equipment base structure from damage. 2. Avoid resonance. It can solve the resonance problem of the screen body when starting and stopping, and greatly reduce the amplitude and stress generated by the equipment when the vibrating screen starts and stops, so that the screen body can pass through the resonance area in a very short time. Generally, the strong resonance of the vibrating screen supported by the spiral steel spring after passing through the resonance zone no...

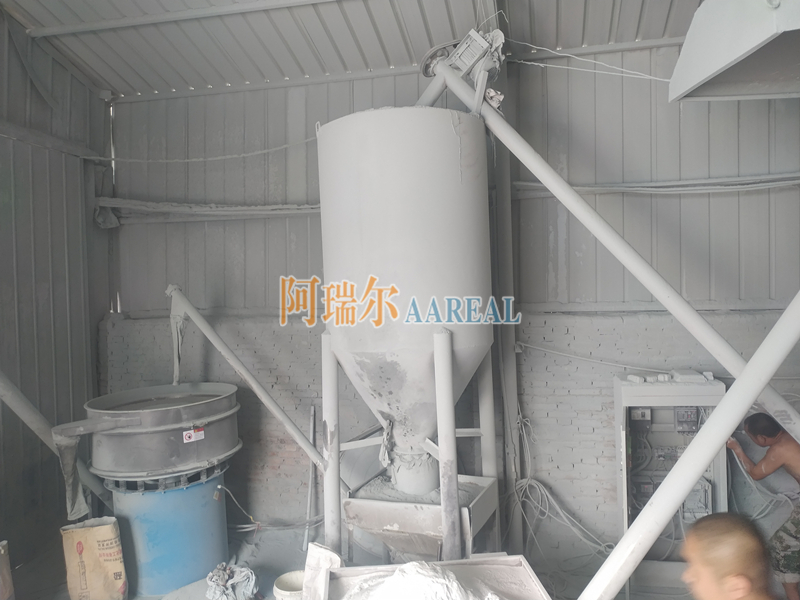

AAREAL specialize in manufacturing Special Rotary Vibrating Screen for PVC Plastic Powder Industry. With high efficiency, large capacity and quick discharging speed. This kind of vibrating sieve is suitable for impurity removal with less impurity. The usually used mesh size are 30 mesh, 40 mesh, 50 mesh, 60 mesh etc. For 1500mm such vibro sieve machine, 40 mesh, about 1.2 tons per hour output. Our company also produce turbo-screen air classifier for spherical graphite powder, linear vibrating screen for silica sand, low-profile vibrating separator for flour powder impurities improval, centrifugal sifter for herbal powder, gyratory screen for frac sand, gyratory sifter for calcium carbonate, dewatering screen for dry tailings, Mogensen probability vibrating screens, trommel screen, tap test test sieve shaker etc. If you are interested in our equipment, welcome to send inquiry.
